Designed for demanding S-band SatCom & TT&C missions, this compact stacked-patch antenna combines reliable circular polarization, broad coverage & mission-ready environmental robustness in an efficient form factor.
PRODUCT OVERVIEW
Proven capability to compact Satellite platforms
The S-Band Dual-Band Patch Antenna operates over 2025-2110 MHz and 2200-2290 MHz through a dual-port, enabling easy integration into compact RF subsystems.
Designed for spaceborne use, S-Band Dual-Band Patch Antenna offers balanced coverage and consistent link performance across both operating bands.
VALUE AT GLANCE
Connectivity designed to endure.
Space proven, with operational capability across -40°C to +85°C.
TECHNICAL FEATURES
Frequencies
Rx: 2025–2110 MHz
Tx: 2200–2290 MHz
Peak Gain
> 6 dBi
Port-to-Port Isolation
: > 23 dB
VSWR
< 1.7:1
Beamwidth
92° ± 2°
Polarization
RHCP
APPLICATIONS IN ACTION
One antenna class. Multiple real-world wins.
Constellation TT&C:
High isolation and stable gain support predictable, repeatable links across frequent LEO passes, enabling scalable operations with reduced RF and integration complexity.
Multi-RF SmallSats
>30 dB port-to-port isolation helps shield sensitive receivers from high-power Tx interference, making it ideal for platforms carrying multiple radios or RF payloads in tight volumes.
Earth Observation & High-Value Payload Missions
Provides a clean, resilient S-band command-and-health lifeline for safe mode and routine control, where mission assurance depends on rock-solid TT&C.
Full-Duplex Operations
Purpose-built Rx/Tx separation and geometry minimize desensitization risks, supporting efficient commanding and telemetry flow when short contact windows demand simultaneous links.
RADIOS & ANTENNA PORTFOLIO
Mission-Ready Radios & Antennas
The Radios & Antennas portfolio delivers flight-ready communications hardware for LEO missions. From resilient TT&C links, it offers band and configuration options in compact, integration-friendly form factors.

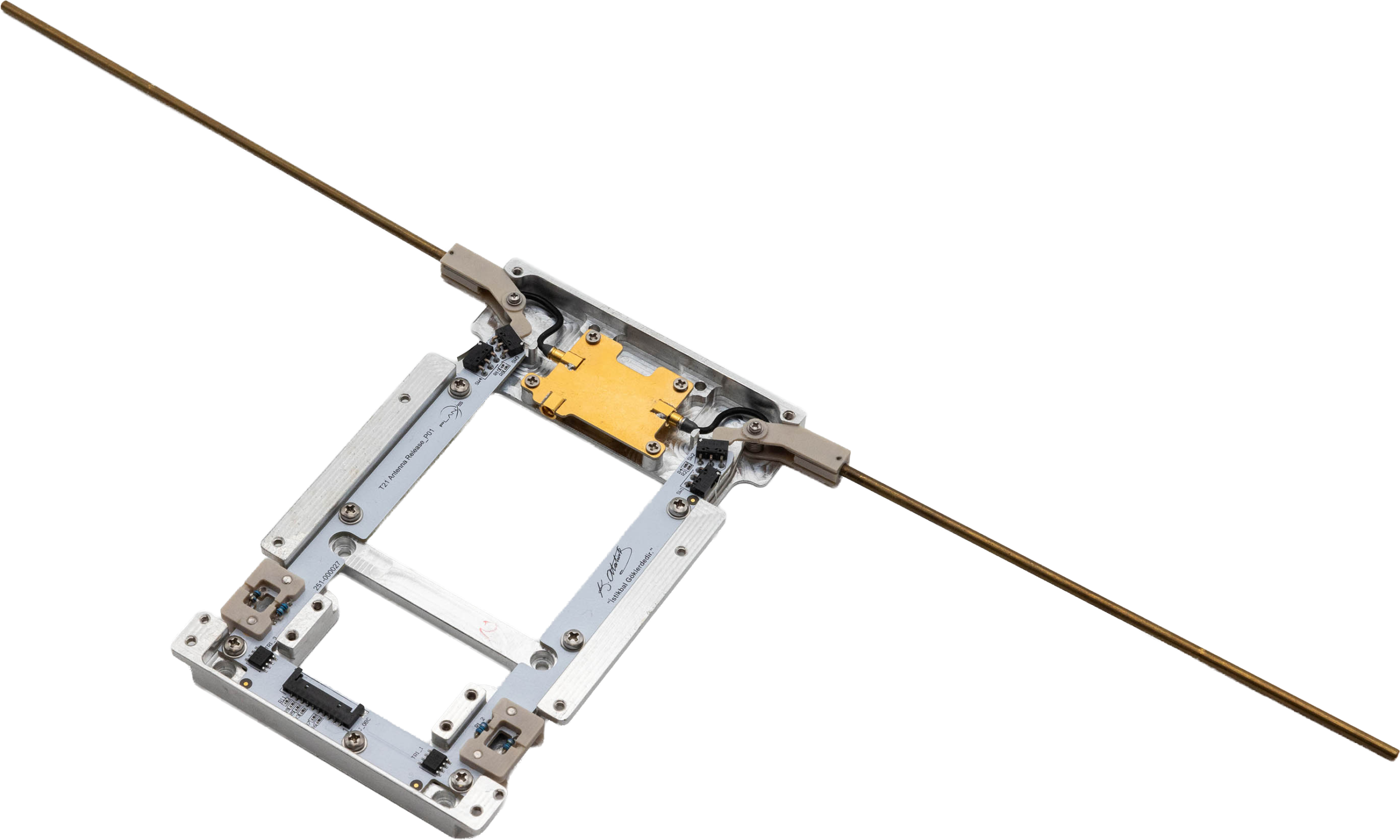

UHF Deployable Dipole Antenna
A deployable UHF solution designed to deliver wide-area TT&C coverage, with a deployment architecture focused on mechanical confidence.
X-Band Transmitter
A configurable X-band transmitter engineered for sustained high-throughput downlink.
UHF Deployable Monopole Antenna
A deployable UHF solution designed to deliver wide-area TT&C coverage, with a deployment architecture focused on mechanical confidence.
S-Band Patch Antenna
A compact S-band antenna optimized for dependable TT&C, providing stable links throughout routine operations and contingencies.
X-Band Patch Array Antenna
A high-gain, low-profile array on LEO small satellites while keeping integration simple.
GET IN TOUCH
From First Contact to Full Confidence
Plan-S designs space systems as infrastructure, engineered for deployment, scale, and trust. The S-Band Dual Transceiver Antenna brings that approach to TT&C, reducing hardware and integration complexity while delivering robust links that maintain command authority across every pass.
