Compact Footprint. Critical Connectivity.
Compact, capable, and mission-ready, the S-Band Patch Antenna delivers robust uplink and downlink performance in a 70 × 70 mm footprint.
PRODUCT OVERVIEW
Compact by Design. Proven in Flight.
The S-Band Patch Antenna Series is engineered for modern small satellite missions that require dependable TT&C performance without compromising precious payload volume. Proven flight heritage and TVAC qualification make this antenna a reliable choice for mission-critical TT&C links.
VALUE AT GLANCE
Connectivity designed to endure.
Space proven, with operational capability across -40°C to +85°C.
TECHNICAL FEATURES
Frequencies
2025–2110 MHz or 2200–2290 MHz
Peak Gain
> 6 dBi
Port-to-Port Isolation
> 30 dB
VSWR
< 1.5:1
Beamwidth
92° ± 2°
Polarization
RHCP
RADIOS & ANTENNAS PORTFOLIO
Mission-Ready Radios & Antennas
The Radios & Antennas portfolio delivers flight-ready communications hardware for LEO missions. From resilient TT&C links, it offers band and configuration options in compact, integration-friendly form factors.
X-Band Transmitter
A configurable X-band transmitter engineered for sustained high-throughput downlink.
UHF Deployable Monopole Antenna
A deployable UHF solution designed to deliver wide-area TT&C coverage, with a deployment architecture focused on mechanical confidence.

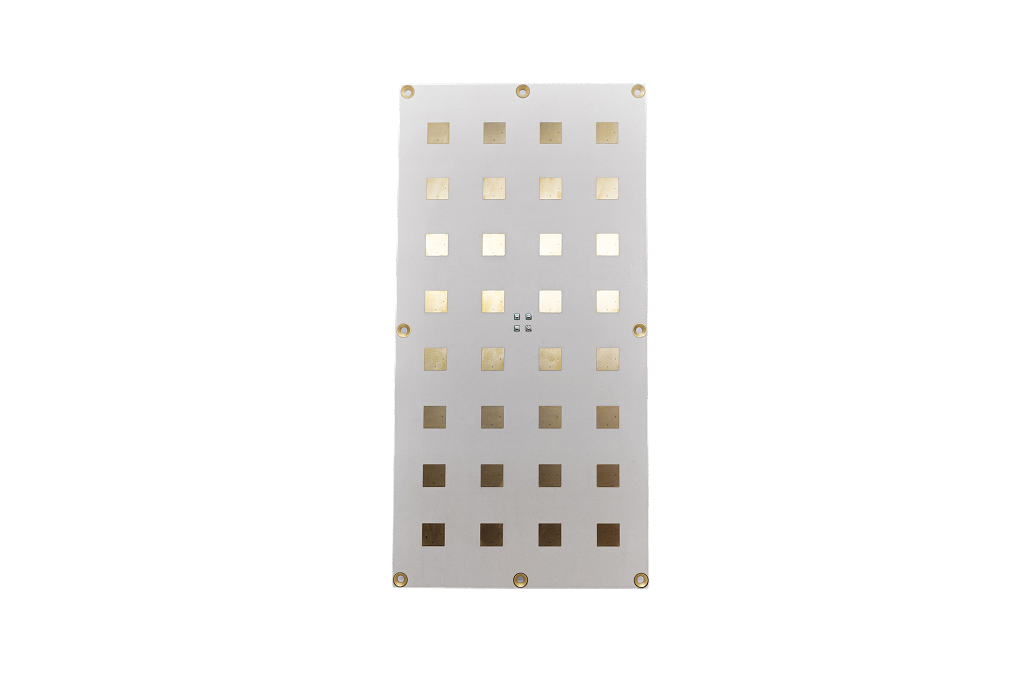

X-Band Patch Array Antenna
A high-gain, low-profile array on LEO small satellites while keeping integration simple.
GET IN TOUCH
Built for the Moments That Matter Most.
From technology demonstrators to commercial constellations, the S-Band Patch Antenna Series delivers flight-proven gain, wide-beam coverage, and environmental resilience for next-generation TT&C. Its space proven, ultra-low-profile design de-risks link performance and keeps mission connectivity engineered.
