Higher Gain. Smaller Aperture.
The X-Band Patch Array Antenna is engineered for higher-gain applications. Optimized for high data rate X-Band communication systems, it delivers circular polarization across the desired bandwidth while preserving a compact, lightweight aperture.
PRODUCT OVERVIEW
High-Gain X-Band Capability, Built into a Single PCB Panel
The X-Band Patch Array Antenna is designed for integration into modern satellite platforms that demand high gain in a compact, lightweight aperture for X-Band communication. Planar PCB implementation makes it ideal for satellite systems where performance, size, and weight must be tightly controlled.
VALUE AT GLANCE
High-Gain X-Band Performance
PCB-based, low-profile implementation supports tight SWaP (size, weight, and power) budgets without sacrificing RF performance.
TECHNICAL FEATURES
Frequency Range
7900–8500 MHz
VSWR
< 1.45
Peak Gain
20.7 ± 0.5 dBic
Half-Power Beamwidth (HPBW)
o 18.5° ± 0.5° @ XZ-Plane
o 8.7° ± 0.2° @ YZ-Plane
Polarization
Right-Handed Circular (RHCP)
Axial Ratio
< 2 dB within HPBW
RADIOS & ANTENNAS PORTFOLIO
Mission-Ready Radios & Antennas
The Radios & Antennas portfolio delivers flight-ready communications hardware for LEO missions. From resilient TT&C links, it offers band and configuration options in compact, integration-friendly form factors.
X-Band Transmitter
A configurable X-band transmitter engineered for sustained high-throughput downlink.

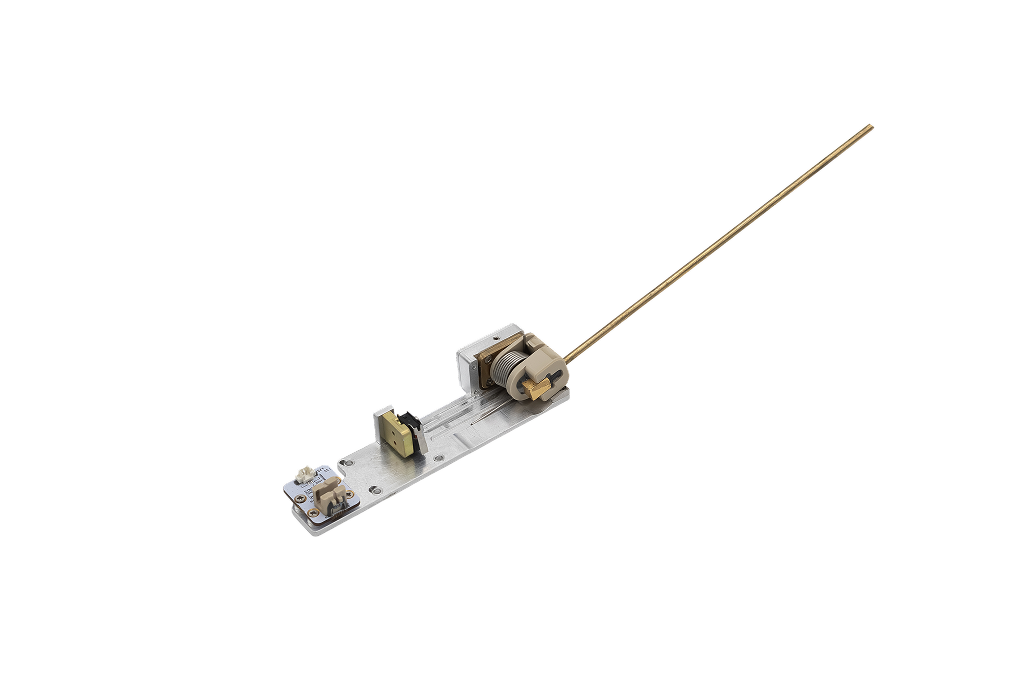

UHF Deployable Monopole Antenna
A deployable UHF solution designed to deliver wide-area TT&C coverage, with a deployment architecture focused on mechanical confidence.

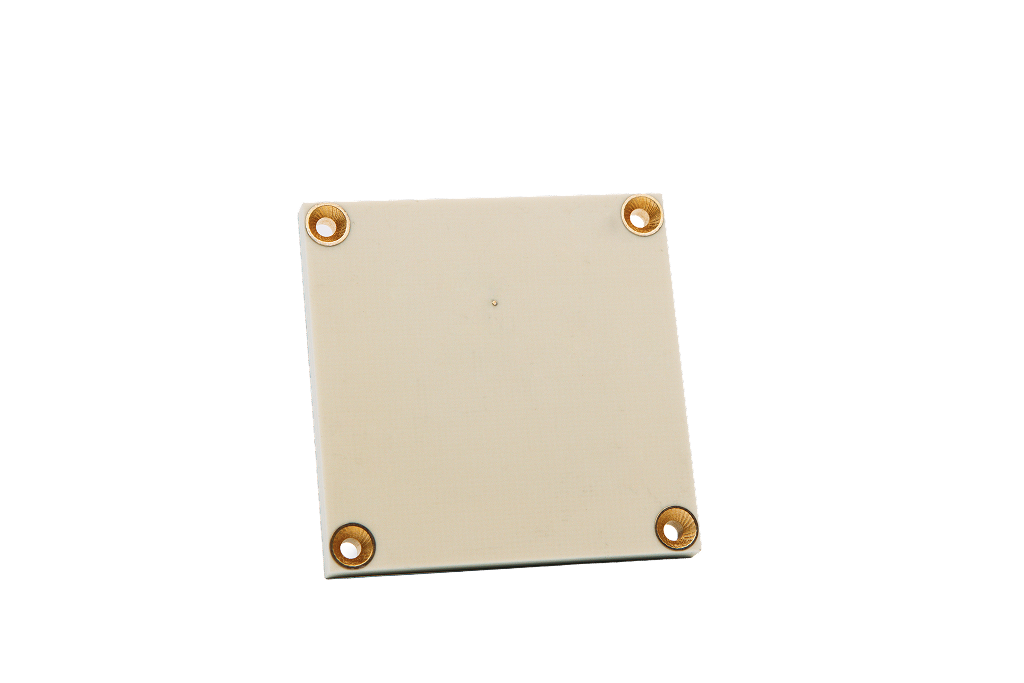

S-Band Patch Antenna
